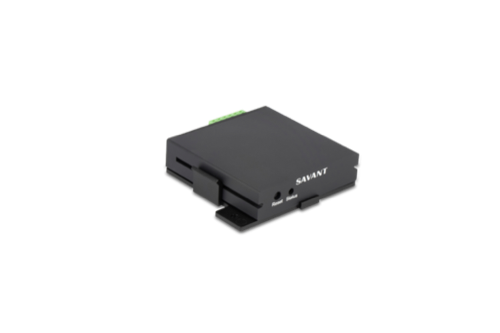

SAVANT SMARTCONTROL RS232 – WI-FI SMART CONTROLLER WITH 2 RS232
Registrate para ver precios
The SmartControl 2 features 2 Serial control ports. In combination with other Savant SmartControl products, it provides the flexibility and scalability needed to meet the needs of any job.
- KEY FEATURES
- 2 RS232 control ports
- Wi-Fi (802.11 b/g/n 2.4 GHz)
- Ultra-compact, surface mount design
- SPECS
Included Items:
- (1) SmartControl 2 Serial Controller (SSC-W02R-00)
- (1) Mounting Plate
- (1) 6-pin Screw Down Plug-in Connector
- (1) 5V DC 1.2A Power Supply
- (1) Cable Tie
- (1) Product Regulatory Insert
Environmental
- Temperature 32° to 104° F (0° to 40° C)
- Humidity 10% to 90% RH (non-condensing)
Dimensions and Weight
- Height 0.64 in (1.62 cm)
- Width 2.70 in (6.85 cm)
- Depth 2.67 in (6.78 cm)
- Net Weight: 0.50 lb (0.22 kg)
- Shipping Weight: 2.00 lb (0.90 kg)
Power
- Input Power 5V DC 1.2A
- Max Power 6 watts
Standards
- Wireless Wi-Fi (802.11 b/g/n 2.4 GHz)
- Bluetooth Low Energy
Compliance
- Safety and Emissions FCC Part 15 | CE Mark | C-Tick | UKCA
- RoHS Compliant
Minimum Supported Release:
- Savant OS da Vinci 8.2
Información adicional
| Peso | 0.5 kg |
|---|---|
| Dimensiones | 10 × 10 × 10 cm |
| Marca |
